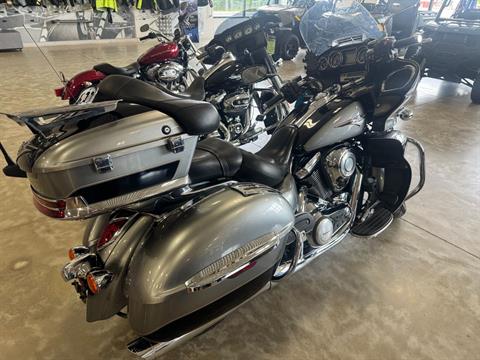

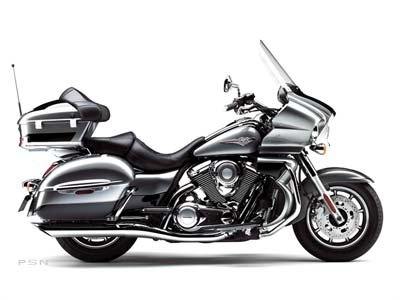

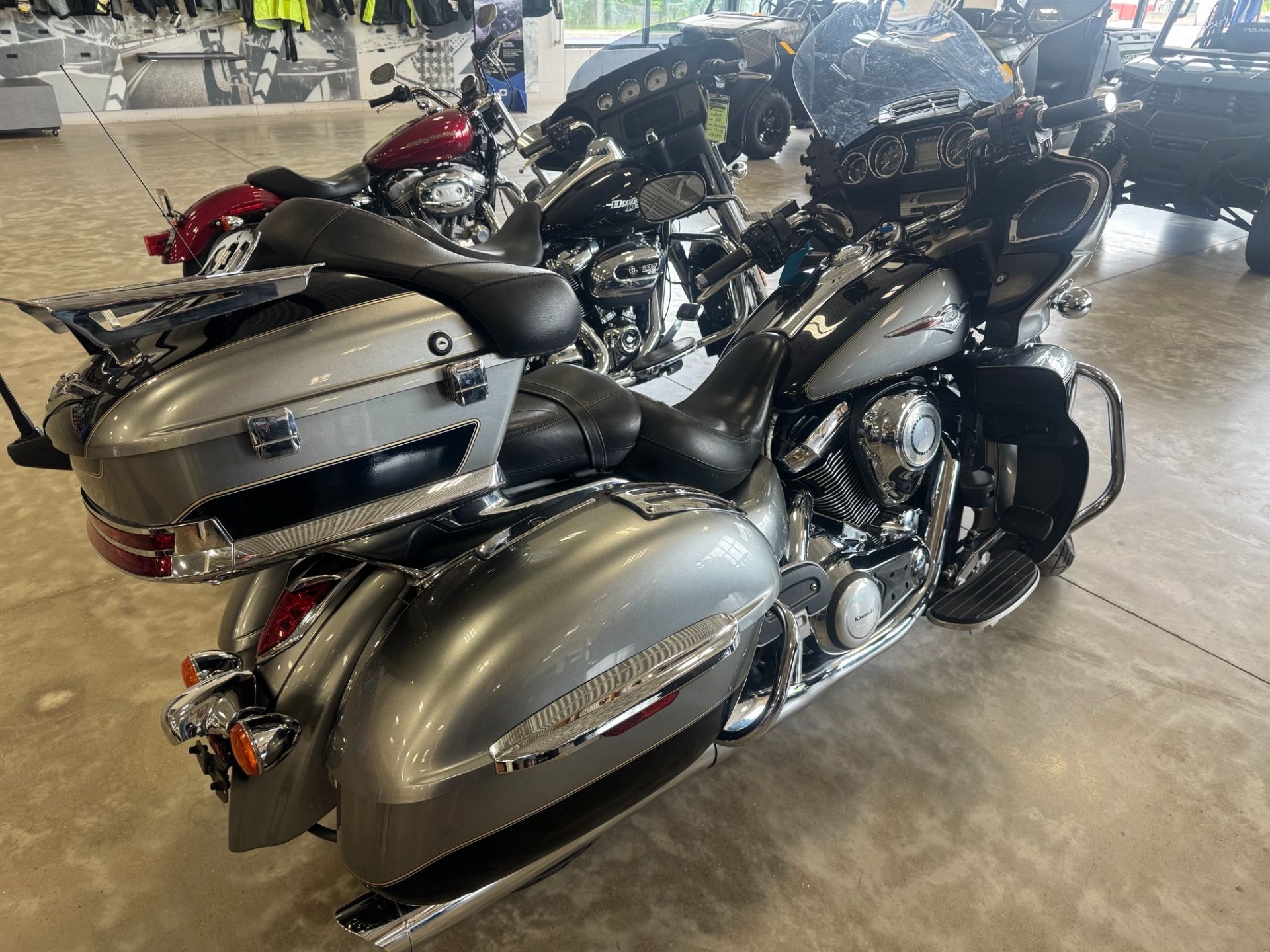

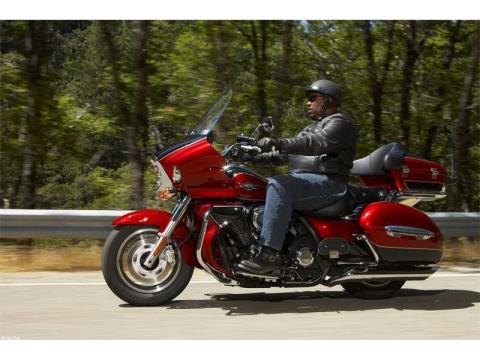

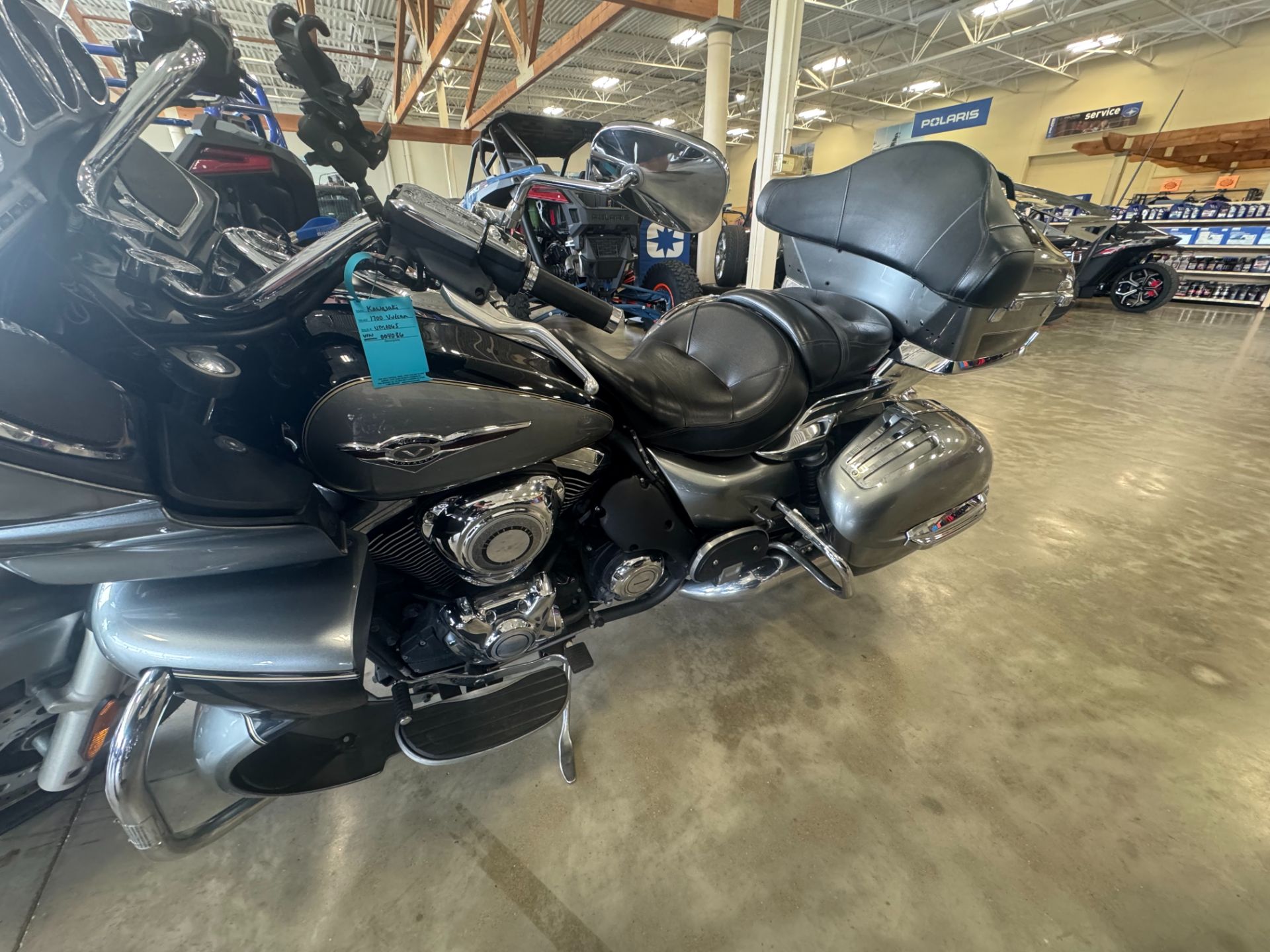

2010 Kawasaki Vulcan® 1700 Voyager® for Sale

45 mm Telescopic Fork

• Provides superb steering feedback
• 5.5 in. of travel helps provide excellent ride quality

6-speed Transmission / Final Drive

• 28 mm carbon fiber final drive belt offers a 40% increase in tensile strength compared to current Kevlar belts. This allows the Vulcan 1700 to use a slim belt that’s only 2 mm wider than the Kevlar unit on the Vulcan 900
• Both 5th and 6th gears offer “overdrive” ratios, contributing to stress-free riding and better fuel economy when cruising at highway speeds
• Belt drive system is quiet, efficient and offers reduced maintenance compared to a chain

9-spoke Cast Wheels

• Allow the use of tubeless tires and complement the Voyager’s muscular styling
• Tire choice and suspension settings augment the chassis’ light handling characteristics
• 130/90 front and 170/70 rear radial tires offer good traction and wear characteristics

Ample Storage

• Up front, lockable glove boxes provide a handy place for storing small items and accessories. An iPod jack (optional connector required) is located in the left-side glove box
• Top-opening side cases are sealed and lockable, with a volume of 10 gal. (38 l) each
• 13.2 gal. (50 l) lockable trunk is large enough to fit 2 full-face helmets

Bodywork

• Liberal use of chrome contrasts nicely with the bodywork’s deep, lustrous paint. The engine, front and rear guards, accents on the side cases and trunk, and the trunk brackets are fully chromed
• Design motif from the front fender is continued by the rear fender, which features an elegant LED taillight

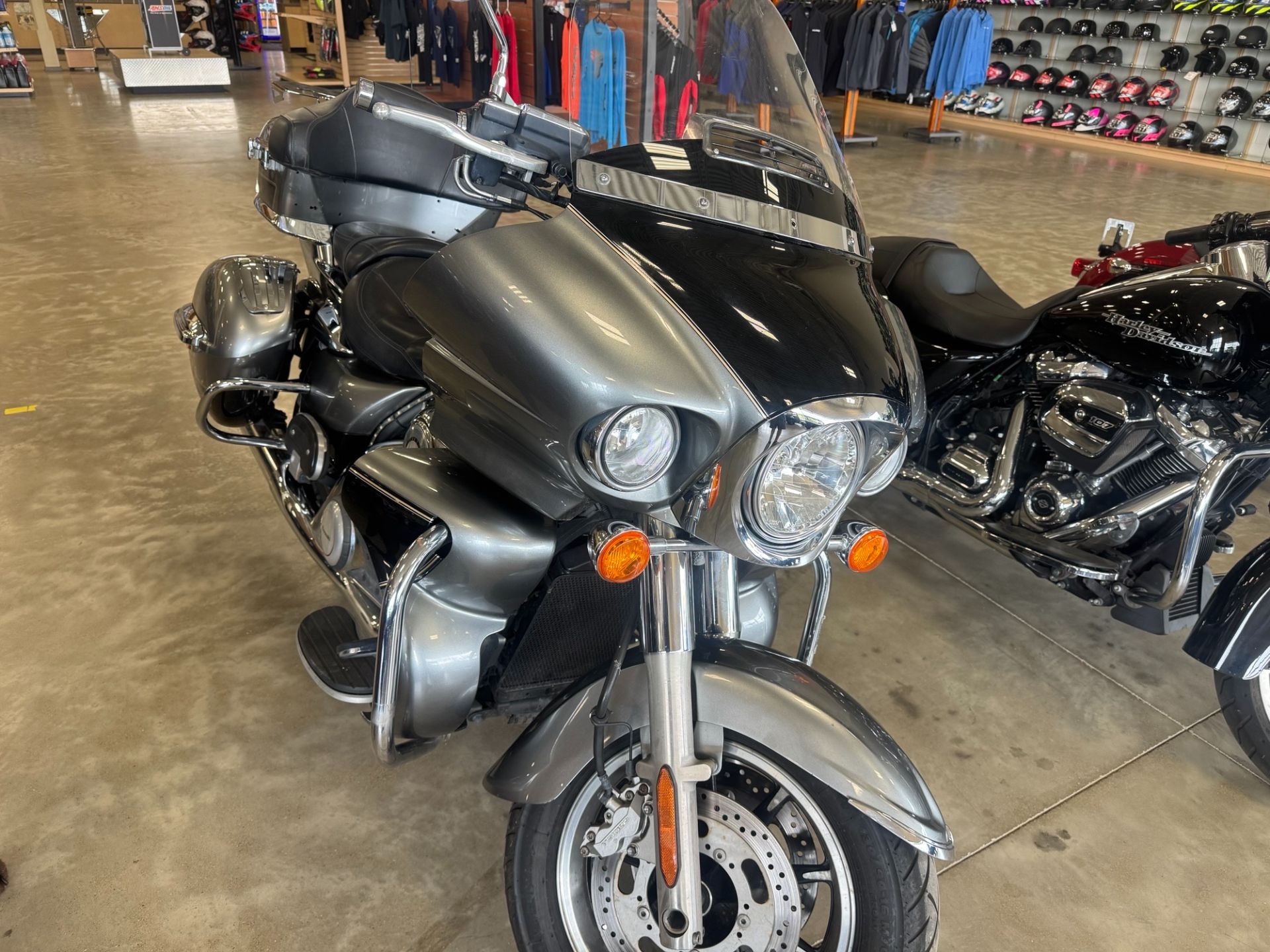

• Muscular front fairing is reminiscent of classic American muscle cars in its sculpted, flowing design
• Chromed headlamp cover and twin fog lights contribute to the muscle car theme

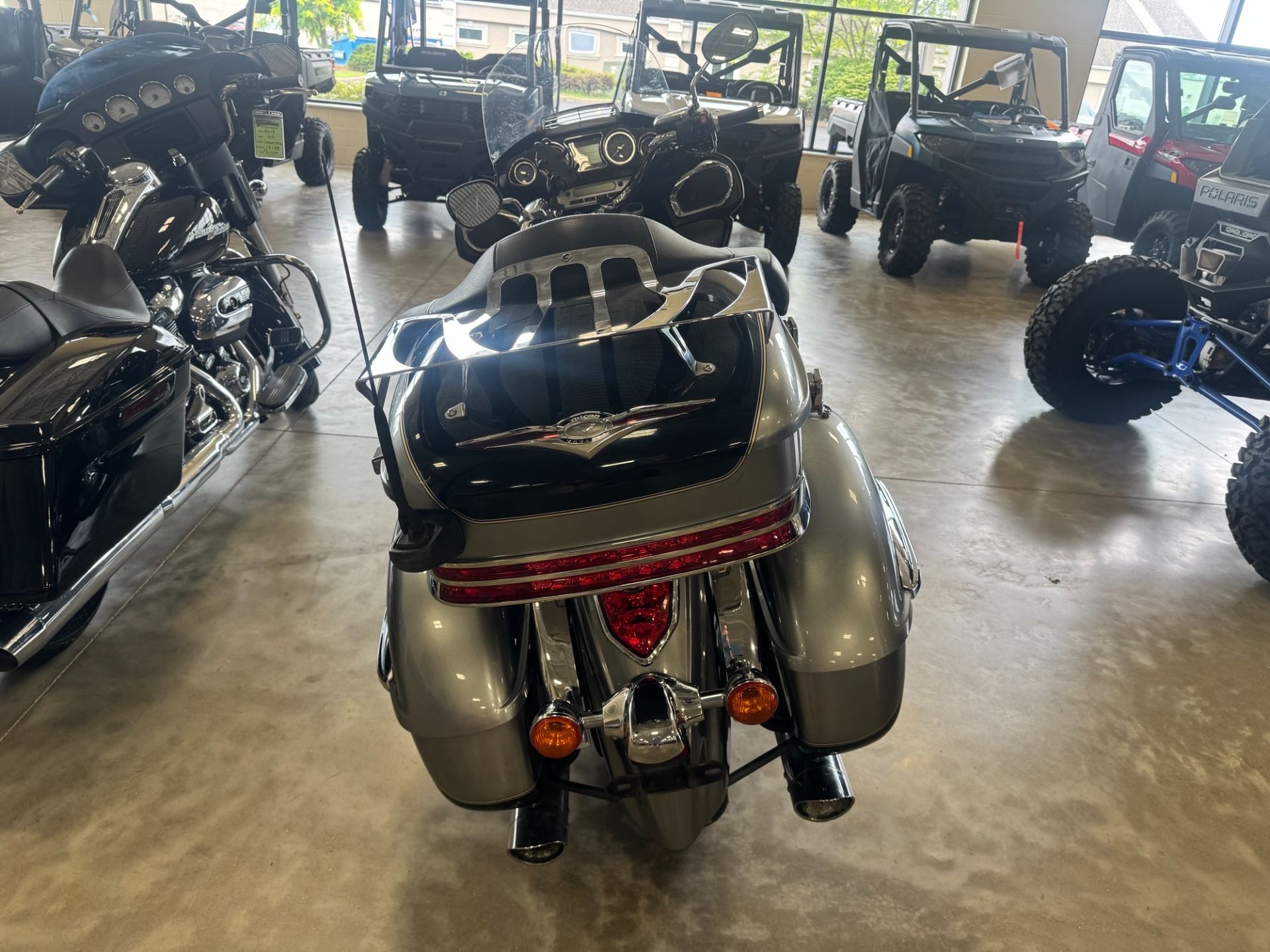

• In addition to the taillight on the rear fender, the Voyager also has a large, highly visible LED taillight mounted on the rear of the trunk that contributes to its appearance
• Dual 35W fog lights have a dedicated On / Off switch and can be adjusted vertically
• The lines flowing through the rest of the bike and its elegant fuel tank contribute to the Voyager’s curvaceous figure
• The fuel tank’s hand-sculpted contours employ a constantly varying radius, giving the bike a dynamic flow that is pleasing both to the eye and to the touch
• Front and rear guards help protect the bike’s bodywork in case of a tip-over

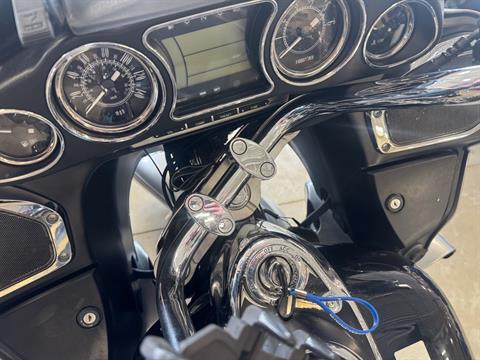

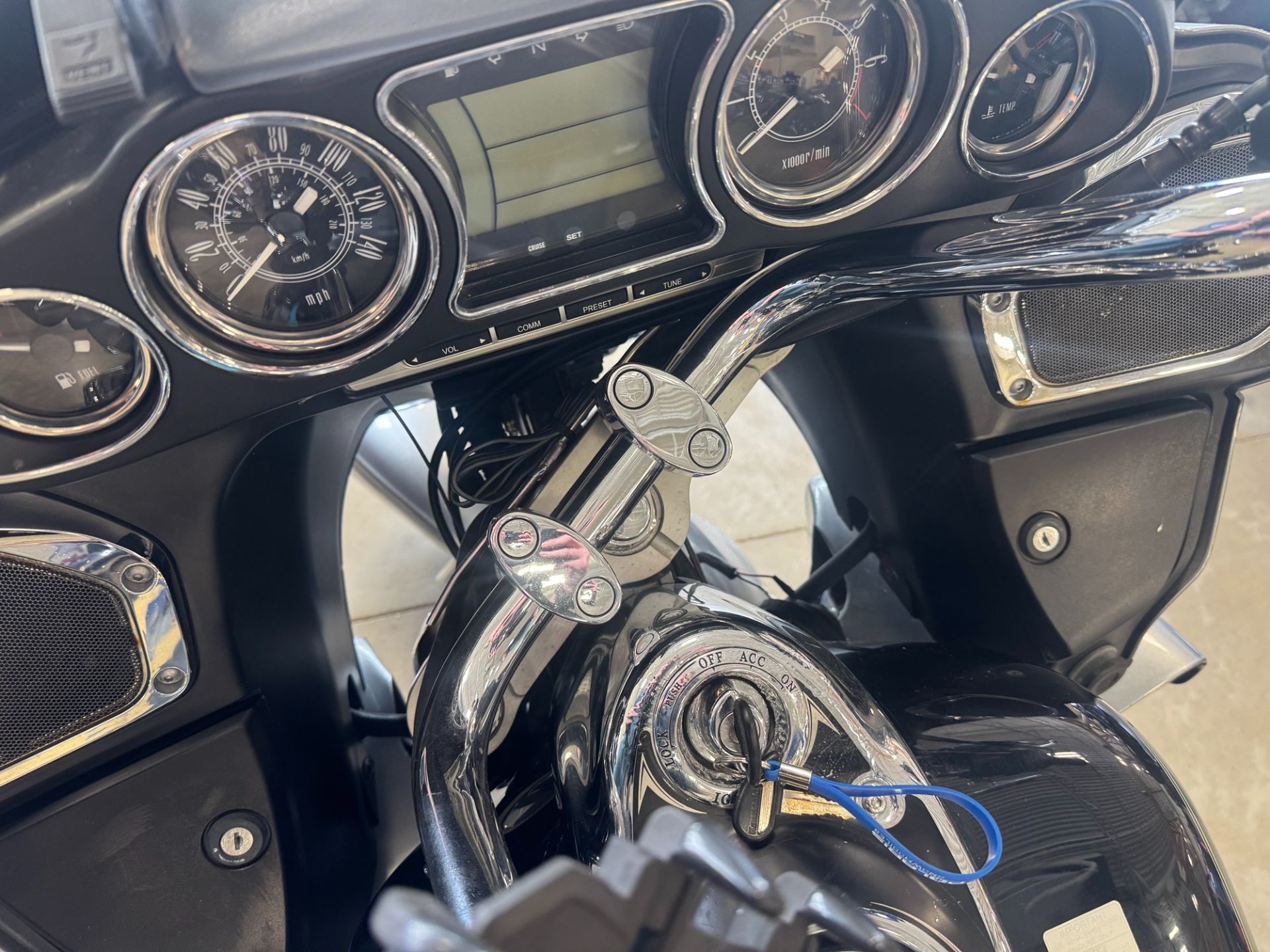

Classic Retro Dashboard

• Multi-function LCD display in the center of the instrument console is controlled by switches on the right handlebar. Features include a gear position indicator, fuel gauge, clock, odometer, dual trip meters, remaining range and average fuel consumption
• The audio system (and iPod) can be operated by switches on the left handlebar
• Instrument layout and large round dials give the Voyager’s console a classic automotive elegance, which is reinforced by the font used in the instrumentation
• Analog displays include speedometer, tachometer and coolant temperature gauge
• Even the radio has a classic look, reminiscent of the 1960's
• Audio system with twin speakers features radio (FM / AM / WX) and compatibility with optional iPod®, XM tuner or CB radio units
• Ignition switch allows key removal in the on-position; preventing keys from damaging the chrome finish around the ignition area during operation
• A number of features facilitate comfortable long-distance touring
• Turning the ignition switch collar to the ACC position allows accessories to be used while the engine is off and turning it to the “OFF” position turns the engine off and necessitates re-insertion of the key to restart

Classic V-twin Appeal

• The edges of the cooling fins receive a special NC treatment that makes them gleam in sunlight
• All the non-chromed parts of the engine have a matt black finish that further accentuates the chromed parts
• Deeply chromed engine covers have curved upper surfaces. Their 3-dimensional form adds volume and gives a quality appearance
• The line created by the top of the airbox and the cylinder heads forms a curved shape that continues to flow through the bike
• Basic architecture has a significant impact on a V-twin engine’s appearance

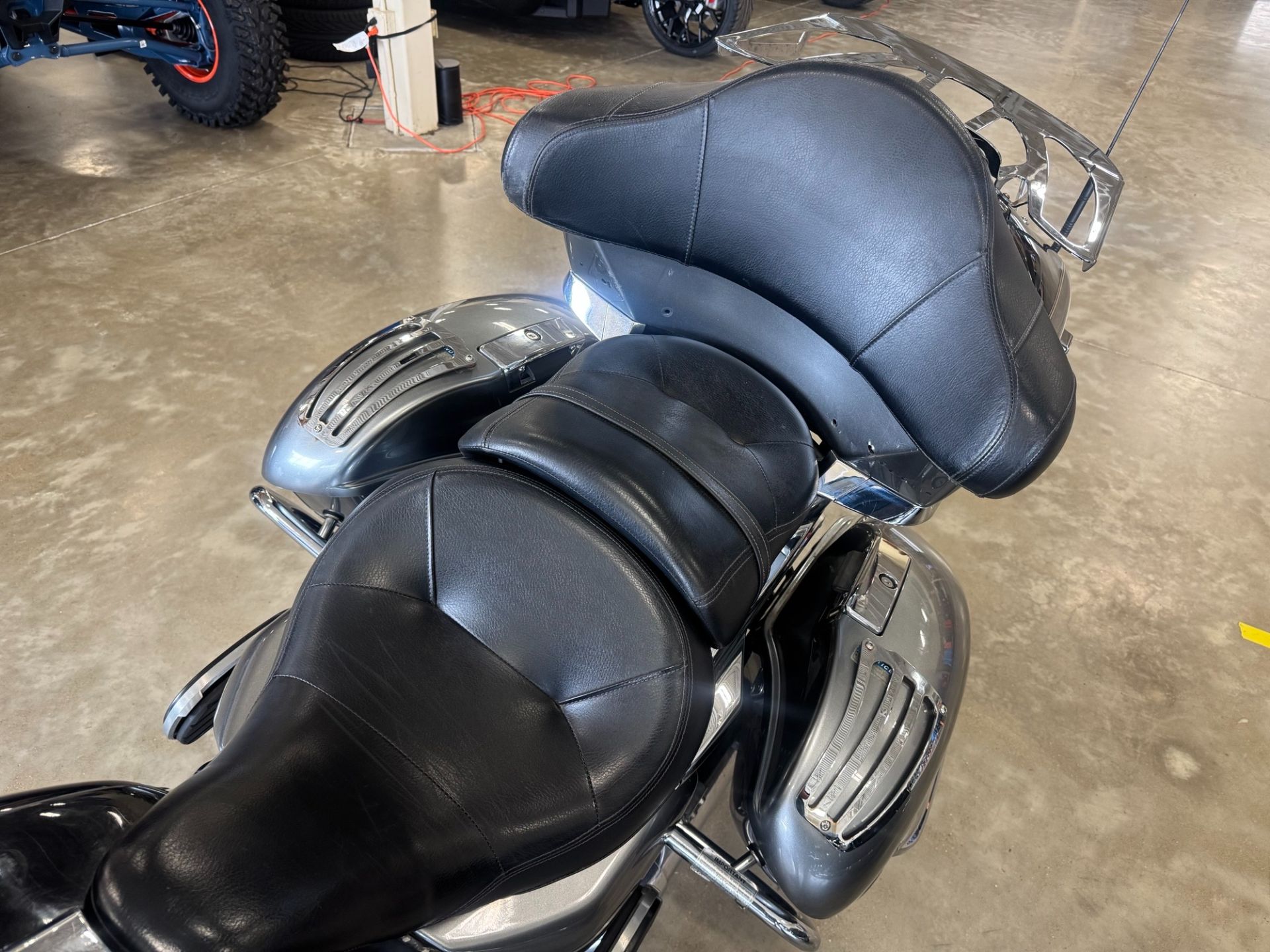

Comfort

• Rear floorboards contribute to passenger comfort
• Sculpted seat designed for both long-distance ergonomics and an easy reach to the ground
• Dual adjustable rear air-shocks use settings optimized for load carrying and long distance comfort
• Upright riding position and floorboard contribute to all-day touring comfort
• Roomy passenger seat is complemented by padding on the trunk that provides back and arm support

Cruise Control

• The cruise control can be engaged and adjusted entirely from the right handlebar
• Cruise control can be activated in 3rd gear or above at any speed between 30 mph and 85 mph
• Pressure on the brake lever, clutch lever or rear brake pedal will automatically disengage the cruise control, as will manually rolling-off the throttle

Dual Adjustable Rear Air Shocks

• 4-way rebound damping adjustments help the shocks compensate for changes in spring pressure
• Feature air adjustable spring preload to help compensate for passenger and luggage variations
• Voyager specific settings to match the load carrying and long distance touring requirements inherent in this type of motorcycle

Electronic Throttle Valve System

• From the rider’s perspective, the ETV works like a standard cable-operated throttle
• Accurate throttle position is relayed to the ECU by a Throttle Position Sensor (TPS)
• Optimized fuel injector timing and throttle valve position results in accurate, powerful engine response
• APS and TPS send 2 sets of signals to the ECU for system redundancy in the unlikely event of a sensor failure
• Control of both fuel injection and airflow provides easy starting and precise cold-engine idle speed control
• The throttle grip is still connected to cables, so the feel at the grip is the same
• Fully electronic throttle actuation system enables the ECU to control the volume of intake air (via throttle valve angle) and fuel (via fuel injector timing) delivered to the engine
• Twisting the throttle turns a pulley on the throttle body which triggers the Accelerator Position Sensor (APS) to send a signal to the ECU, which then modulates the throttle valves via a DC motor

Fuel Injection

• Utilizes 1 sensor in place of the usual 3, for reduced complexity and weight
• The touring-oriented Voyager utilizes FI and exhaust systems which are tuned to reach peak torque and horsepower at a higher rpm than the engines used in standard Vulcan 1700 cruisers
• Based on the systems used by the Ninja 650R and Vulcan 900

Light Handling Chassis

• Designed to be as light and slim as possible, the frame minimizes the number of forged parts and trims any unnecessary metal. The only forged parts are areas that require additional strength - the down-tube joint, engine brackets, side-stand bracket, and rear fender / shock absorber bracket
• The compact design contributes to light handling and facilitates handling at low speeds, especially when executing precise slow speed maneuvers like parking or making U-turns
• A more compact package than its predecessors, the Voyager has a shorter wheelbase and shorter distance between the seat and steering head, for improved rider ergonomics and easier maneuverability

Long Range

• 5.3 gal. fuel tank offers a substantial range, helping to minimize fuel stops when out on the open road

New 2nd Generation Kawasaki Advanced Coactive-Braking Technology (K-ACT) ABS

• The new K-ACT uses the same ECU and ABS unit found on the Concours 14, but has only 1 mode option instead of the other bike’s 2-mode system
• Both ABS and non-ABS models use dual 300 mm front disc brakes with 4-piston calipers and a 2-piston rear disc brake for sure, powerful stops
• For controllability in tight corners and when executing U-turns, K-ACT’s coactive function does not engage when braking is initiated at speeds below 12 mph
• Voyager ABS models feature the latest, fastest version of Kawasaki’s sophisticated K-ACT system, which enables riders to execute controlled, balanced braking. Designed to complement the riders’ brake inputs, the system distributes the ideal amount of brake pressure to maximize braking efficiency
• Low battery mode maintains ABS function while reducing signal frequency to conserve power when needed.
• The ABS function is disengaged at speeds below 4 mph

New for 2010

• Improved radiator ducting helps keep heat away from the rider’s right leg
• Improved exhaust pipe heat shielding reduces radiant heat felt by the rider
• A coolant pipe has been shortened, for easier oil-screen maintenance

On Board Diagnostics

• Displays codes on the instrumentation, which can be read by owner; using accessory manual
• Diagnostic system allows self testing of the electronic systems on the Vulcan 1700

Powerful 1,700 cc, V-twin Engine

• Engine tuning offers superior acceleration in the 50 - 70 mph range
• Valve system is based on the Vulcan 2000, but uses a single overhead cam arrangement instead of pushrods, for quicker revving and enhanced mid-high rpm power
• Features dual mufflers, 1 on each side of the bike, to allow maximum clearance for luggage
• Approximately 15% greater than that of the Vulcan 1600, with a distinct V-twin feel
• Long stroke 102 x 104 mm bore and stroke helps deliver high levels of torque
• Even in overdrive, the engine pulls strongly in this speed range, facilitating overtaking at highway speeds
• Liquid-cooled, 4-valves per cylinder, fuel-injected 1,700 cc, 52° V-twin engine
• Semi-dry sump allows a lower crankshaft placement and a longer piston stroke without increasing engine height
• Single-pin crank accentuates the engine’s V-twin character by providing stronger power-pulses
• Small diameter iridium spark plugs reach deep into the combustion chamber for high combustion efficiency, especially during low-load operation
• Large capacity airbox is located on both sides of the engine

Wind Protection

• Large windshield and front fairing help protect the rider and passenger from wind and elements
• With the front fairing mounted to the frame, any wind buffeting is transferred to the bike rather than the handlebars, helping to enhance highway stability and reduce rider fatigue
• Leg shields have adjustable vents to tailor the amount of airflow to the rider’s legs
